CXDI-Elite

Evolution of technology and design in pursuit of usability

Safety, durability, and a design that takes the user into consideration, achieve a smooth workflow that does not put a burden on patients, by featuring Mobile X-ray.

  • CXDI-420CW : 460 x 460 mm
  • CXDI-720CW : 384 x 460 mm
  • CXDI-820CW : 307.5 x 384 mm

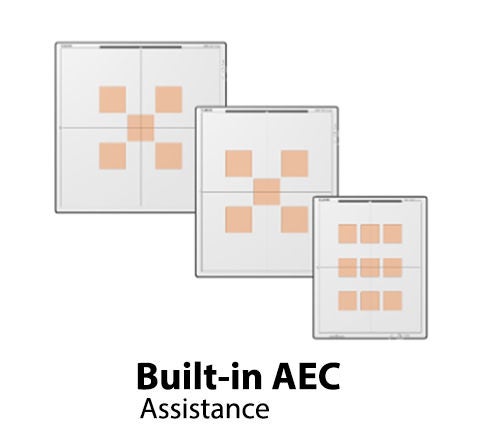

Built-in AEC* Assistance (BiAA)

The CXDI-Elite series enables automatically terminated exposures without the need for an additional receptor (ion chamber, solid state paddle, etc.).



  • There are five or nine AEC Regions of Interest (ROI) depending upon model.
  • The Flat Panel Detector (FPD) can detect the accumulated pixel value that corresponds to received X-rays in realtime at each AEC ROI and notify the X-ray generator when the pixel value reaches the present value.

This function works via both wireless and wired communication, which enables the optimization of X-ray dose without an external AEC sensor, even in free-position imaging, such as from the bedside.

※Option software solid separately and Multibox (MB-02) are required.

  • AEC stands for Automatic Exposure Control.
    Exposure termination is controlled by the X-ray generator. This feature requires connection to the manufacturers' system. In an environment with exceptionally strong radio interference, it may be recommended to use a wired rather than wireless connection. As with any AEC operation, appropriate exposure factors with a reasonable backup time should be set.

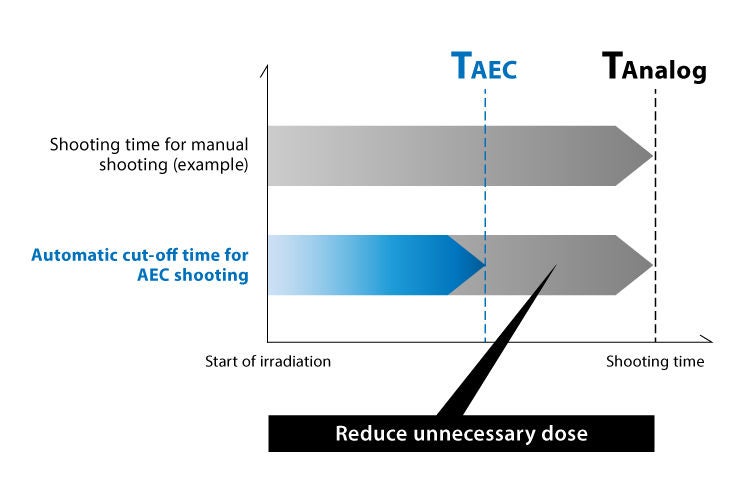

BiAA contributes to proper dose stability

CXDI-Elite detectors deliver optimum image quality at minimum dose, with instant reproduction of imaging data, providing maximum information for minimum effort. Built-in AEC* provides a better control over X-ray dose.

Even in environments where re-imaging is difficult, such as in an operation room, BiAA enables imaging at the appropriate dose, minimizing the risk of re-imaging.


Easy handling, sleek detector design

Improved portability due to lighter weight and better grip

Even though it is equipped with a replaceable battery, the CXDI-Elite detector weighs only 2.5kg, and has deep recesses of approximately 9mm on three sides of the back panel, making it easy to carry.


IP57 -Rated

Designed to meet high standards for dustproofing and waterproofing, smooth investigations can be carried out with the CXDI-Elite detector, even in harsh conditions.

  • This is based on the test conditions set by certification authorities, and does not guarantee against any damage or failure.
  • If the product is subjected to impact such as being dropped or bumped, it may not be able to maintain its water resistance equivalent to IP57.
